ProxyServerSharp

A personal proxy server written in C#, speaking SOCKS4/4a, SOCKS5 and HTTP(S), with several authentication methods available on each.

Originally a .NET Framework 4.7.1 WinForms app with a working SOCKS4 core and stubs for the rest. Rewritten for .NET 10: the protocol work now lives in a cross-platform library, with both a headless console host and the Windows desktop app on top of it.

A listener offers whichever methods you configure; a client satisfying any one of them is let through. Where a protocol can express a preference, the server's order wins, not the client's.

• Digest is the strongest option for a listener that is not wrapped in TLS: the password never goes on the wire. The cost is on the server side — verifying a Digest response needs HA1, so such an account must store a plaintext password or a precomputed HA1 rather than the one-way PBKDF2 verifier everything else uses.
• Basic and Bearer send a reusable secret in the clear. Use them on loopback, or enable TLS on the listener so the credential is encrypted on its way to the proxy.
• Negotiate authenticates against the Windows login through SSPI, so there is no proxy password to store at all. It needs a multi-leg exchange, which this server carries across 407 round trips on one connection.
• SOCKS5 GSSAPI (RFC 1961) is the Kerberos/NTLM option for SOCKS, and the only SOCKS method that can protect the traffic itself: after the handshake it negotiates a protection level of none, integrity, or integrity plus confidentiality. Client support is thin — curl implements it, most SOCKS libraries and every browser do not.
• SOCKS5 username/password travels in the clear, exactly as RFC 1929 specifies. Keep that listener on loopback or a trusted network.
• SOCKS4 USERID is an identifier, not a secret — there is no password anywhere in SOCKS4. Treat it as a label and pair it with the address allow list.

Listeners are edited in a grid, with the authentication methods and the per-listener settings beside it. Options that do not apply to the selected protocol are disabled — TLS and the Digest algorithms are greyed out here because a SOCKS5 listener is selected.

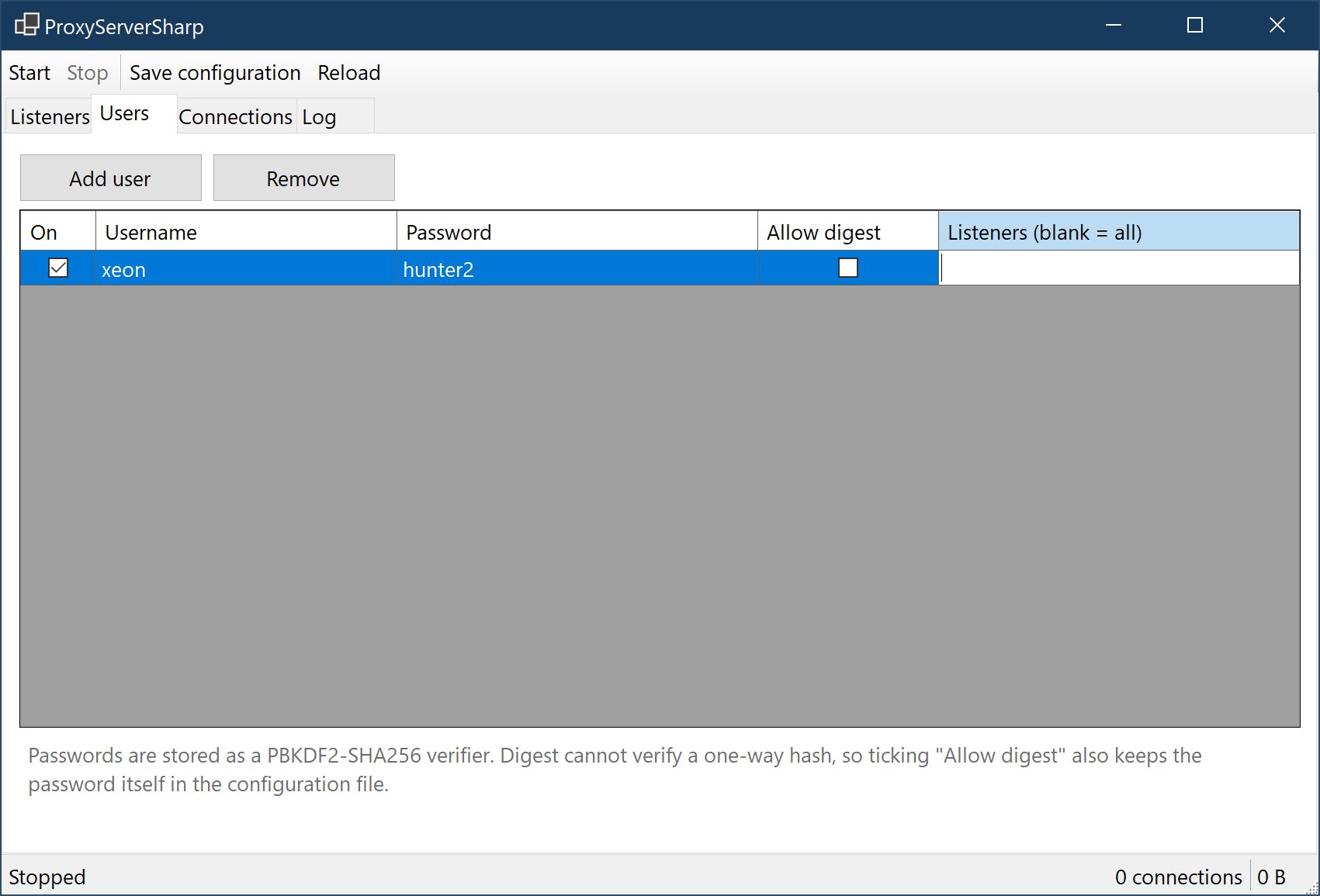

Accounts, with the note about why enabling Digest also keeps the password itself on disk.

Live connections, each with its destination, state and byte counters — here relaying 18 simultaneous tunnels for a browser.

The server log, at information or debug level.

src/ProxyServerSharp.Core   net10.0          the protocol and authentication engine
src/ProxyServerSharp.Cli    net10.0          "proxysharp", a cross-platform console host
src/ProxyServerSharp.App    net10.0-windows  the WinForms desktop front-end
tests/ProxyServerSharp.Tests                 157 tests over real loopback sockets

dotnet run --project src/ProxyServerSharp.Cli -- --socks5 1080 --user alice:hunter2

More examples:

# An open SOCKS5 proxy on loopback, plus SOCKS4 on the next port
proxysharp --socks5 1080 --socks4 1081

# HTTP proxy demanding Digest, so the password never crosses the wire
proxysharp --http 8080 --auth Digest --user alice:hunter2 --realm home

# HTTPS proxy: TLS to the proxy itself, Basic credentials inside it
proxysharp --http 8443 --tls --auth Basic --user alice:hunter2

# Reachable from the LAN, restricted by address
proxysharp --socks5 1080 --bind 0.0.0.0 --allow 192.168.1.0/24 --user alice:hunter2

# Turn a password or bearer token into the verifier that belongs in a config file
proxysharp hash-password

--help lists every flag. Everything a flag can set is also settable in the configuration file, and the file reaches settings the flags do not; see proxysharp.sample.json.

proxysharp --config ./proxysharp.json

The desktop app (src/ProxyServerSharp.App) reads and writes the same JSON shape, at %APPDATA%\ProxyServerSharp\proxysharp.json, so a configuration moves between the two unedited. It shows listener and account editors, live connections with byte counters, and the server log.

proxysharp hash-password emits a PBKDF2-HMAC-SHA256 verifier, which is what belongs in a configuration file:

{
  "ProxyServer": {
    "Users": [
      {
        "Username": "alice",
        "PasswordHash": "pbkdf2-sha256$600000$...$...",
        "TokenHashes": [ "pbkdf2-sha256$600000$...$..." ],
        "Listeners": [ "socks5" ],
        "AllowedClients": [ "192.168.1.0/24" ]
      }
    ]
  }
}

An account can be restricted to named listeners and to client address ranges. Digest is the one exception to hashing: give such an account a Password, or a precomputed DigestHa1 entry keyed "<realm>:<algorithm>", so the server can derive HA1 without storing a reversible password for the other schemes.

• Listeners bind 127.0.0.1 unless told otherwise.
• Destinations on loopback and the link-local range — including the cloud metadata address 169.254.169.254 — are blocked by default, and the check runs against the resolved address, so a host name cannot be used to walk around it.
• Per-listener client allow/deny lists, a global connection cap and a per-client connection cap are all enforced.
• Starting a listener that is anonymous, non-loopback and unrestricted logs a warning saying so.

• Digest algorithms. The server offers one challenge per algorithm, strongest first (RFC 7616 §3.7); the default is SHA-256 then MD5. Some clients read only the first Digest challenge and support only MD5 — notably anything using the Windows SSPI digest package, which includes curl built against Schannel. Put "DigestAlgorithms": [ "MD5" ] on the listener if you need to interoperate with those.
• Digest qop=auth-int is implemented but off by default (AllowDigestAuthInt). Its response hash covers the request body, so the body of a not-yet-authenticated request has to be buffered — capped by MaxBufferedRequestBody, 256 KiB by default. Essentially no client implements it.
• GSSAPI and Negotiate are served through SSPI on Windows and GSSAPI elsewhere; a non-Windows host needs a keytab for either to work at all.
• SOCKS5 UDP fragmentation is not reassembled: datagrams with a non-zero FRAG field are dropped, which RFC 1928 §7 explicitly permits and every mainstream client already assumes.
• HTTP/2 and HTTP/3 are not spoken to the client. CONNECT tunnels carry them fine, since the proxy is not looking inside; only the plain-forwarding path is HTTP/1.1.

Beyond finishing SOCKS5 and adding HTTP, TLS and the authentication schemes:

• Async throughout. The original gave every connection two dedicated threads. Sockets are now driven with async/await and pooled buffers.
• Half-close is honoured. The original closed both sockets as soon as either direction ended, truncating any response that arrived after a client half-closed. Each direction now ends independently, shutting down only the far side's send channel.
• Correct SOCKS4 replies. The original sent version byte 0x04 on the failure path; a SOCKS4 reply always begins 0x00, so rejections looked like garbage to conforming clients.
• Connection limits. The original kept an unbounded List<ConnectionInfo>; there are now global and per-client caps, and the tracker feeds the desktop app's live view.
• Timeouts. Separate handshake, connect and idle timeouts, so a stalled client cannot hold a slot forever while a busy tunnel is never cut off mid-transfer.
• Persistent HTTP forwarding. Requests are framed properly — Content-Length, chunked, or until-close — so both the client and upstream connections stay alive across requests, interim 1xx responses are relayed, and a 101 switches the connection to a raw tunnel. Conflicting Content-Length fields are rejected rather than guessed at, closing a request-smuggling vector.
• Configuration and logging through Microsoft.Extensions.* instead of Properties.Settings and Console.WriteLine.

dotnet build                                     # whole solution
dotnet build src/ProxyServerSharp.Core           # library only, cross-platform
./tests/ProxyServerSharp.Tests/bin/Debug/net10.0/ProxyServerSharp.Tests.exe

The desktop app targets net10.0-windows and only builds on Windows; the library, console host and tests are cross-platform.

GNU AGPLv3. See LICENSE.
